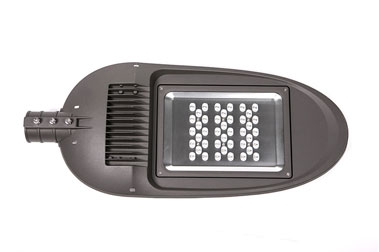

LED가로등90W (RB LMT-ST-E-90) |
| MODEL : LED가로등90W (RB LMT-ST-E-90) |
| VOLTAGE(V) : AC220V 60Hz |
| POWER(W) : 90W |
| POWER FACTOR : > |
| TOTAL LUMINANCE FLUX : 9450 LM |
| LUMINANCE EFFICIENCY : 105~110 lm/W |
| COLOR TEMPERATURE : 4000 K 5000 K 5700 K | |
| COLOR RENDERING INDEX : >70 Ra 75 Ra |
| BEAM Angle : ˚ |
| LIFE SPAN : 50,000 Hours ± |
| OPERATION TEMPERATURE : -30℃ ~ 60℃ |

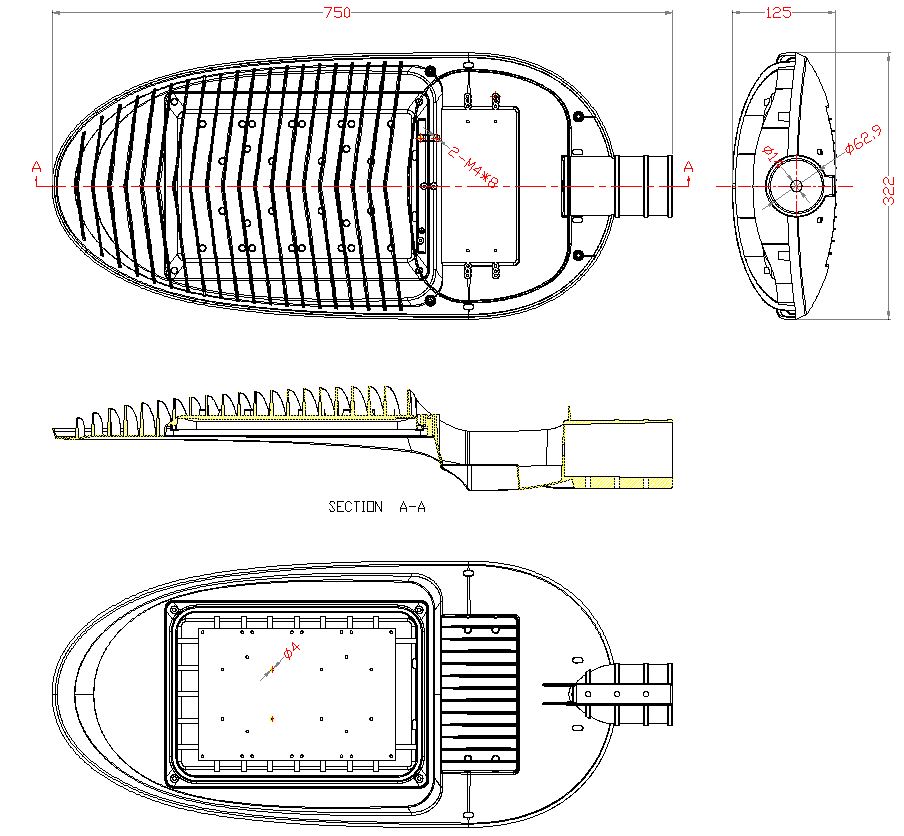

| DIMENSION : W322*D750*H125 mm (도면참고) |
| 등주직경: 60.5mm / 고정깊이: 120mm |
| WEIGHT : 8~11 KG ± |
| MATERIAL : AL DIE CASTING ETC |
| |
| APPLICATION : 일반도로, 고속도로 |
| 산업시설/단지 내 광역도로 |
| 광장주변 등 기타 |
