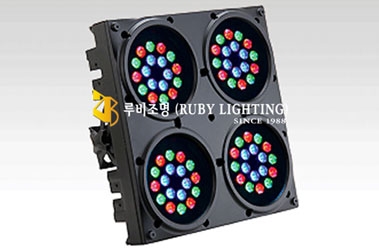

제품명 : LED 무대조명_LED BANK
제품번호 : ML-0830 / ML-0832
제품크기 : W380  D226  H380(브라켓치수 포함)

용 도 : LED OUT DOOR LIGHT

■ DMX Control Channels
   Channel1   Red
   Channel2   Green
   Channel3   Blue
   Channel4   Yellow
   Channel5   Cyan
   Channel6   Purple
   Channel7   White
   Channel8   Strobe
   Channel9   Rainbow effect and Macro
   Channel10  Switch on / off
   Channel11  50 Programs for choose

■ Power supply: AC110V-240V, 50/60HZ
■ Control method: Master/slave mode, synchronic mode.Any channels combination can be set Up.
■ Programmable mode,Demo,Controller mode
■ High-temperature auto protection
■ Grey 256
■ Strobe: 1-8flash per second
■ Protection grade: IP65
■ Beam angle: 15° /25° / 38°
■ Life: about 30,000  hours
■ Dimensions: 440*440*265mm
■ N.W : 11.5kgs  G.W: 13.5kgs

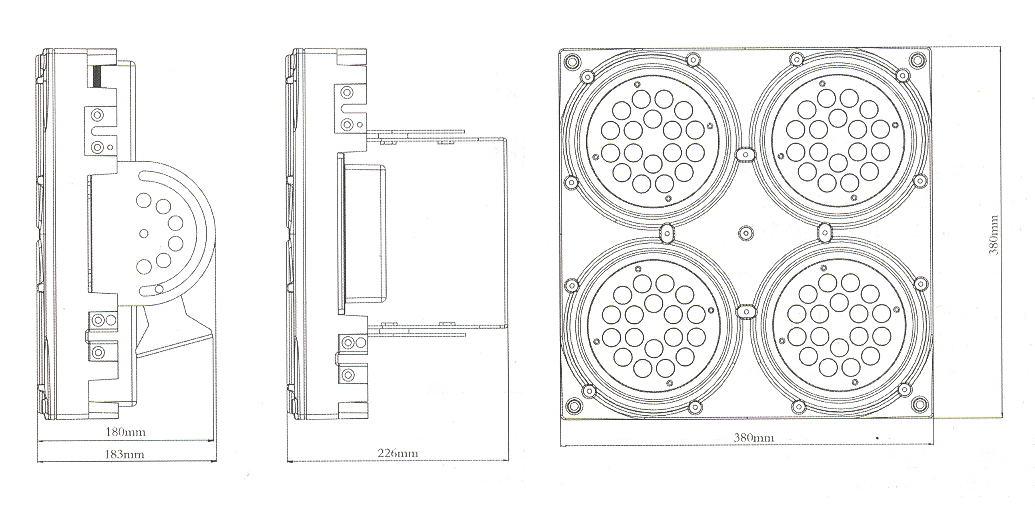

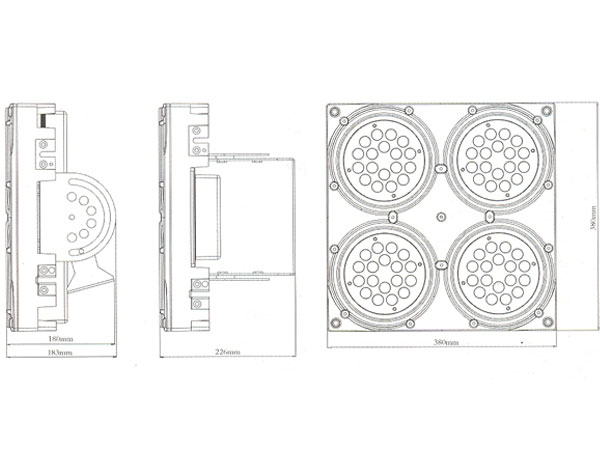

  ◎ DRAWING PLAN  ◎
