ML-0621 |
|
|
 |
제품번호 |
: |
ML-0621 |
|
사이즈 |
: |
W538.1 H608.7 D593.3 |
|
|
|
|
 |
|
|
|
 |
|

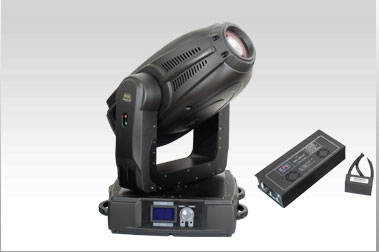

제품명 : 무대조명
제품번호 : ML-0621
제품크기 : W538.1 H608.7 D593.3 (브라켓치수포함)
용도 : Moving Head System, Color Wash 700
소 . 대공연장 이벤트행사장,레크레이션, 극장,콘서트,호텔,바(SPOT/ FLOOD LIGHT)
■ Lamp: PHILIPS MSR 1200 SA
■ Power supply: AC220V/50HZ
■ Power consumption: 1500W
■ 24DMX control channels
■ Major features include a versatile CMY Color mixing system．
■ variable CTO plus an additional Color wheel．
■ High-speed rotating 4 facet prism
■ Incredibly flexible 13 42 degree linear zoom．
■ Color wheel 6 replaceable 'SLOT&LOCK' Colors+open
■ Gobo wheel 1：6 rotating,indexable, replaceable
'SLOT&LOCK' dichroic glass gobos+open
■ Gobo wheel 2：6 rotating, indexable, replaceable
'SLOT&LOCK' dichroic glass gobos+open
■ Iris: Motorized, stepless
■ Effect wheel: 4 rotating, indexable,replaceable
'SLOT&LOCK' prisms and effects+open
■ Frost effect: Separate, variable
■ Dimmer/Shutter: Full range dimming and variable strobe effect
■ Pan movement range 530o, tilt movement range 280o
■ Automatic pan/tilt position Correction
■ Selectable 8 or 16 bit pan/tilt movement resolution
■ Focus: 2m-infinity
■ Dimensions(L*W*H)：640*550*880mm
■ Weight: 85kgs

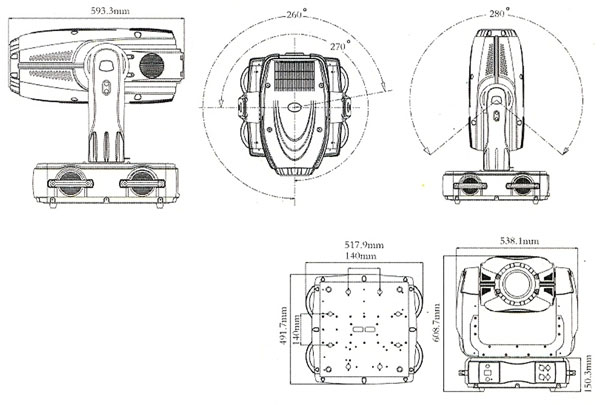

DRAWING PLAN :
|
|
|
|
|
|
|
